Applying a band-stop Fourier filter to a geometry

Sometimes, a track contains small “jagged” or “hook-shaped” sections that we want to remove. To achieve this, we apply a small band-stop filter using a Fourier transform.

Two parameters must be chosen: wl_inf and wl_sup, corresponding to the lower and upper wavelength bounds (in meters) of the stop band. For example, this can be used to remove all components with wavelengths between 1 m and 5 m. The idea is to select these two parameters according to the characteristic size of the small “wavelets” or irregular patterns present in the track.

Import tracklib and matplotlib libraries

import matplotlib.pyplot as plt
import matplotlib.patches as mpatches

import tracklib as tkl

Code running in a no shapely environment

Loading a track

# The data are loaded, for example here as a MULTILINESTRING geometry.

wkt = "MULTILINESTRING((996650.116470902 6543000.302135976,996650.4178357278 6543001.6226440435,996651.9156040812 6543003.657303663,996652.4423765505 6543005.957021008,996655.7158302434 6543010.013807501,996655.9126520777 6543010.737483848,996658.861220837 6543014.477134332), (996690.9653817471 6542986.803184385,996689.3779384803 6542988.211877296,996686.663678412 6542989.299158129,996686.4368865794 6542989.504746181,996682.4986422878 6542991.069878142,996681.0169590351 6542991.013633349,996677.8785852245 6542992.338899864,996675.4910166311 6542992.089205852,996672.9643218932 6542993.294309987,996670.1372578226 6542992.801641864,996667.8920573386 6542994.059546746,996664.9329563477 6542993.336987803,996662.6910195594 6542994.80311256,996659.9024016755 6542994.016245508,996656.9491789015 6542996.084911368,996655.1794429084 6542995.911134065,996651.0192229722 6542998.678920098,996650.116470902 6543000.302135976))"
collection = tkl.TrackReader.parsMultiWkt(wkt)

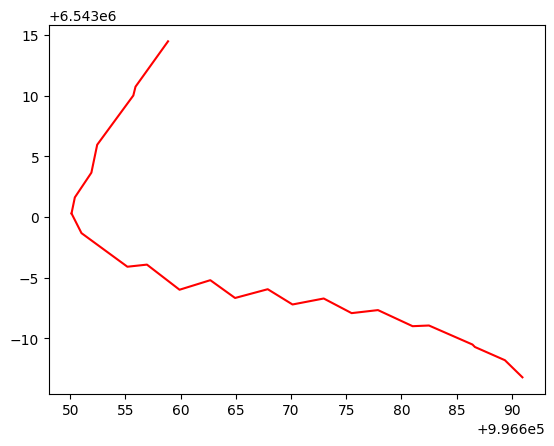

collection.plot('r-')

A function to filter a geometry using a band-stop Fourier filter

def smooth_with_Fourier_filter(geom, wl_inf, wl_sup):

    N = len(geom)

    # Signal centering
    geom = geom.copy()
    c0 = geom.getCentroid();
    cx = c0.E
    cy = c0.N
    geom.translate(-cx, -cy)

    # Preserving endpoints
    ci = geom[0]
    cf = geom[-1]

    # Signal periodic extension
    geom_in = geom.reverse() + geom + geom.reverse()

    if geom_in.length() <= 0:
        return geom.copy()

    # band-stop filter
    signal_low_freq = tkl.filter_freq(geom_in, (1.0/wl_sup), mode=tkl.FILTER_SPATIAL, type=tkl.FILTER_LOW_PASS , dim=tkl.FILTER_XY)[N:2*N]
    signal_hgh_freq = tkl.filter_freq(geom_in, (1.0/wl_inf), mode=tkl.FILTER_SPATIAL, type=tkl.FILTER_HIGH_PASS, dim=tkl.FILTER_XY)[N:2*N]

    # High-pass / low-pass sum
    out = geom.copy()
    for i in range(N):
        out[i, "x"] = signal_low_freq[i, "x"] + signal_hgh_freq[i, "x"]
        out[i, "y"] = signal_low_freq[i, "y"] + signal_hgh_freq[i, "y"]

    # Endpoint recovery
    out[0]  = ci
    out[-1] = cf

    # Recentering the signal
    out.translate(cx, cy)

    return out

Track Example Result

plt.figure(figsize=(5, 5))
collection.plot('r-')

for track in collection:
    s = smooth_with_Fourier_filter(track, 1, 5)
    s.plot('b-')

plt.xlim([996650, 996685])
plt.xticks([])
plt.ylim([6542988, 6543000])
plt.yticks([])

plt.title('Band-Stop Fourier Filtering of a Track')

red_patch = mpatches.Patch(color='red', label='Raw Track')
blue_patch = mpatches.Patch(color='blue', label='Filtered Track')

plt.legend(handles=[red_patch, blue_patch])

<matplotlib.legend.Legend at 0x764f68845f00>
